The Bramidan X30 baler makes light work of large quantities of waste. Small in size but big in capacity this Baler delivers high press forces for fast, easy compression and rapid waste management.
With its extremely wide load opening the X30 has capacity for larger boxes and waste materials than many Balers. This makes daily use easier and ensures that all of your waste needs can be met, quickly.
NB. A double cycle setting for foam for example increases the overall cycle time. A single cycle can be set if required.
If you would like to know more about the Bramidan X30 or any of our Vertical Balers please contact us.
| Model | X30 |
|---|---|
| Press force (t) | 30 |
| Power supply | 3×400V 50Hz 16A |
| Motor (kW) | 4.0 |
| Noise level (dB) | 59-60 |
| Cycle time (sec) | 25 |

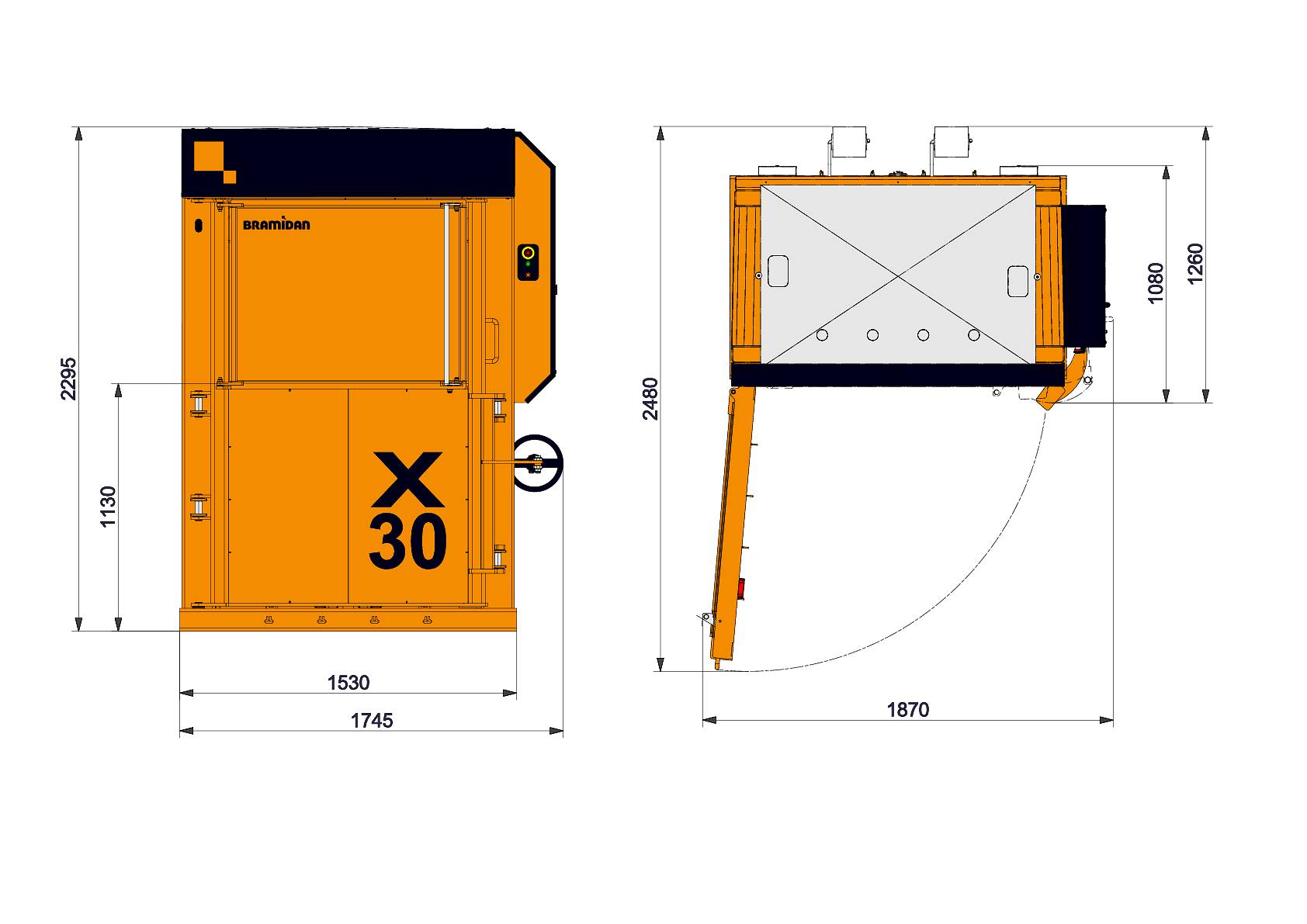

| Dimensions WxDxH (mm) | 1760 x 1255 x 2295 |
| Weight (kg) | 1710 |
| Filling opening WxH (mm) | 1090 x 655 |
| Stroke (mm) | 940 |
| Bale size WxDxH (mm) | 1200 x 800 x 1000 |
| Bale weight cardboard approx (kg) | 275-350 |
| Bale weight plastic approx (kg) | 325-425 |
