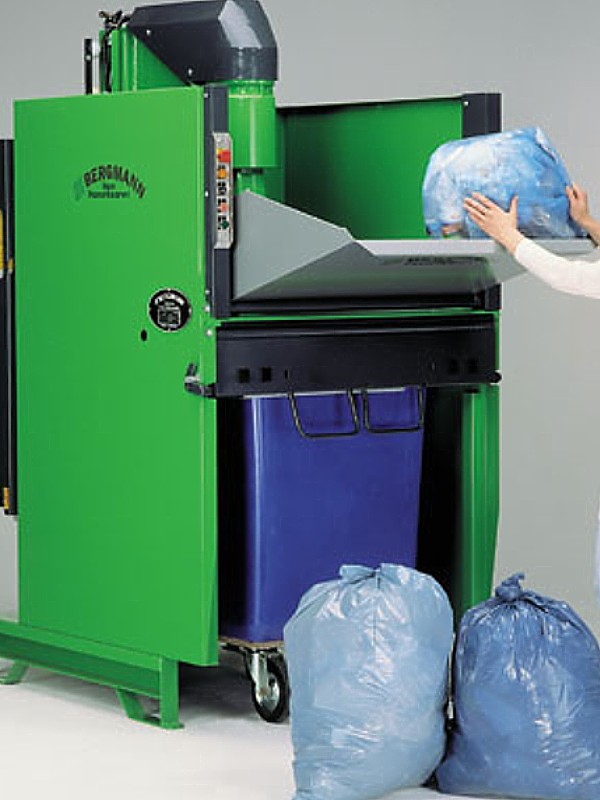

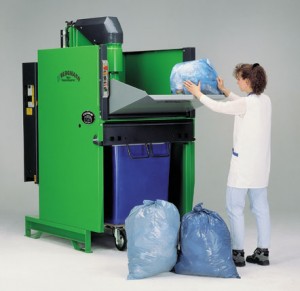

Bergmann APS 800

,

This hydraulically driven Bin Press from Bergmann handles both wet and dry waste. The Bergmann APS 800 is used with 800 litre bins and a modified version of this machine can be supplied for use with 600 litre bins. Both 800 and 600 litre bins are a custom fit for this machine and must be supplied by the manufacturer. The APS compactor can achieve compaction results of up to 9:1 thanks to a special power crusher roller which collects, shreds and compacts waste.

  • Particularly suitable for wet waste and heavy waste
  • Handles refuse including cardboard, foil, polystyrene, and fruit boxes as well as recyclable materials.
  • Eliminates the need for expensive and space consuming containers.
  • Achieves maximum cost savings and significant reduction in effort and labour.
  • Ideally suited to the Food industry, Restaurants, Hospitals and Hotels

QUICK SPECS

Used with 800 litre bins
View More

FINANCE OPTIONS

  • Purchase
  • Rent

CONDITION

  • Refurbished
Let's Talk
X

Technical Info

  • Square format, hydraulically driven
  • Compacts waste into 800 litre bins
  • The APS 800 can be supplied in a modified form for use with 600 litre bins
  • An alternative model, the APS 1100E is an electrically driven version of this machine and compacts into standard 1100 litre bins
  • Large loading aperture of approx 923mm wide
  • Height of loading aperture approximately 1480mm
  • Minimum space requirements: this machine needs less than 2m² of area and only 2.30m of total height
  • Low operating noise of 76dBA at 1 metre
  • Electrical protection IP54
  • Can be fed by chute or conveyor

Technical Summary

Model Bergmann APS 800
Empty weight (kg) 750
Loading aperture height (mm) 1480
Loading aperture width (mm) 923
Overall Width (mm) 1,150
Overall Height (mm) 1,970
Overall Depth (mm) 1,675
Required Headroom (mm) 2,300
Electrical Data 16A three phase +N 400 V

Additional Info

Bergmann APS 800 compacts waste into 800 litre bins

The Bin Press is simple to operate – simply wheel the bin up to the Bin Press and position it in the opening. The bin is lifted into place hydraulically and the arm with the rolling drum descends into the bin. Because the bin is held in position by the machine, it canot be damaged by the compacting arm.

Standard equipment

  • Drum for paper and cardboard boxes
  • Chute
  • Electrical protection class IP 44
  • Branded hydraulic pump.
  • Autotimer
  • Oil level monitoring
  • Working hour counter
  • Overload protection
  • Full signal via signal lamp

Accessories

  • Pointed roof constructed from glass fibre reinforced plastic.
  • Additional full message via horn or flashing light
  • Water sprinkling against dust formation.
  • Ozone generator against unpleasant odours

There is a range of drums for the roto compactor according to the waste stream.

For further information on this or any other Bergmann products, please contact us.
