Bergmann Roto Compactor PS 800

Bergmann Compactors, Refurbished Machines

The unique design of this square Bergmann roto compactor PS 800 allows continuous feeding of waste, even while the machine is in operation. The safety of the operator is not compromised. This means waste does not have to be stored or gathered before being treated – just put it straight into the Rotocompactor.

Bergmann PS800 compacts into 800 litre bags.

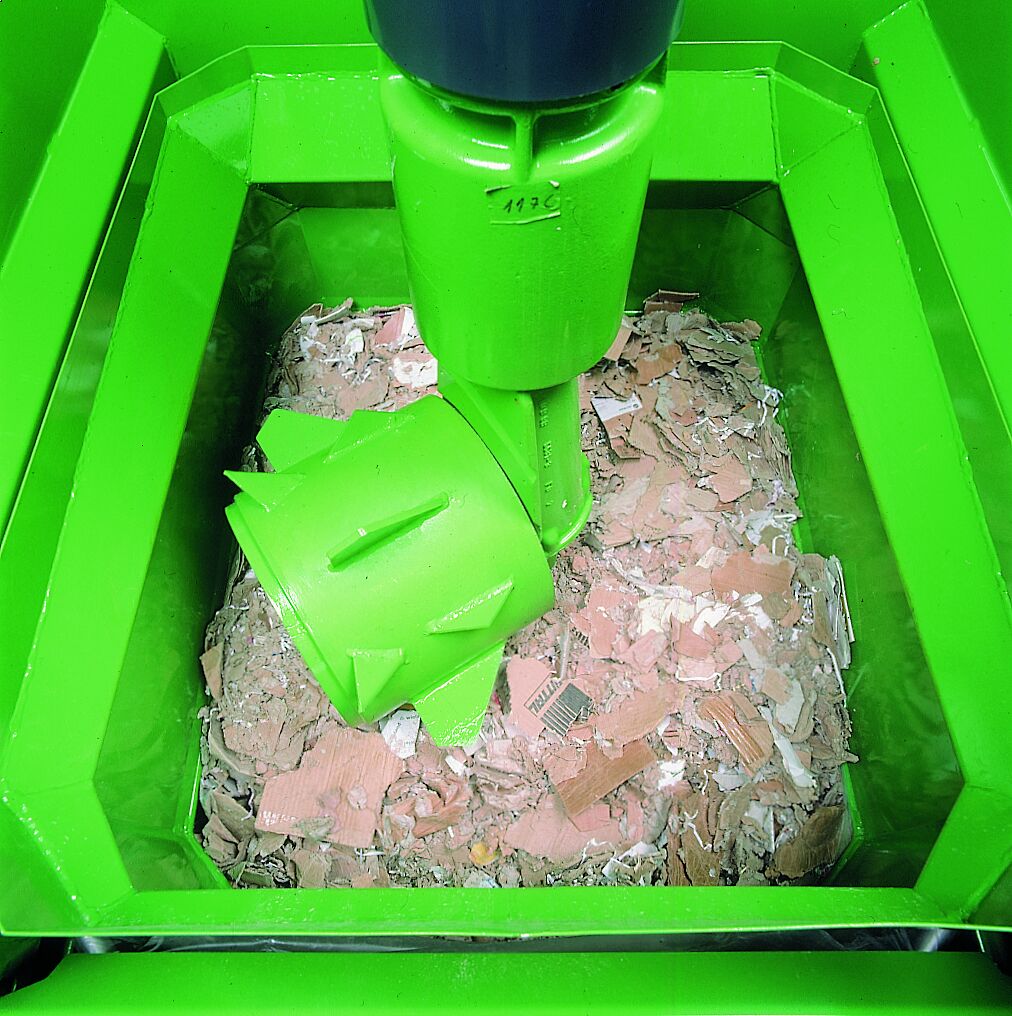

The rotating head tears up the waste material into small pieces for easy compaction, achieving a compaction rate of up to 9:1 dependent upon waste streams.
The equipment is suitable for continuous filling by conveyor belts or chutes and having a small footprint is easily located.

Categories: Bergmann Compactors, Refurbished Machines

QUICK SPECS

Used with

800 litre bags

DOWNLOADS

PS 800 with accessories GB 2013-08-09

Bergmann PS 800 Technical Drawing

PS 800 Layout

FINANCE OPTIONS

Purchase
Rent

CONDITION

Refurbished

Let's Talk

Technical Info

Square format, hydraulically driven.
Compacts into 800 litre bags
Small space requirement of only 1.10 x 1.60 m
Huge loading aperture (approx. 920 x 670 mm)
Enormously high processing capacity
Low operating noise of only max. 65 dBA in 1 m distance
Machine can be filled using chutes or conveyor belts.
Machine CE-certified

Technical Summary

Model	PS800
Width of the machine mm	1.115
Depth of the machine mm	1.605
Height of the machine mm	1.970
Max. required space for handling – Width mm	min 1.200
Max. required space for handling – Height mm	min. 2.360
Electrical data
Input voltage	400 V / 3 Ph
Frequency	50 Hz
Control voltage	24 V
Preliminary fuse on site	3 x 16 A K
Noise level	approx. 76 dB(A) acc. to DIN 5045 (1m distance)
Total weight	approx. 940 kg

Additional Info

The PS800 is particularly suited for refuse as well as general waste including packing foils, polystyrene, fruit boxes, cans, paper and cardboard.
The machine can be positioned close to where the waste is produced, saving handling costs. The machine can also be fed whilst it’s compacting the waste.
Once the machine is full, the waste is emptied by removing the sacks of waste on a pallet.

Standard equipment
• Drum for paper and cardboard boxes
• Filling chute
• Electrical protection system IP 44 (dust-proof, splash-proof)
• Branded hydraulic pump.
• Working hour counter
• Autotimer
• Oil level monitoring
• Overload protection
Accessories
• Pointed roof constructed from glass fibre reinforced plastic.
• Photo electric cell
• Full message via horn or flashing light
• Water sprinkling against dust formation.
• Ozone generator against unpleasant odours
The Bergmann roto compactor can be supplied with a range of drums according to the waste material being compacted. For information on the Bergmann PS800 or any other Bergmann products, please contact us.
